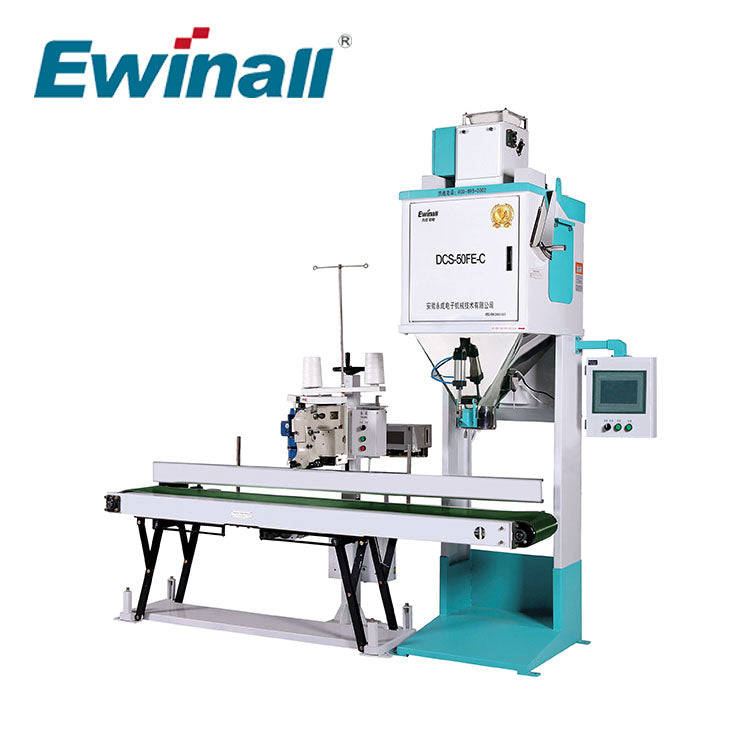

Ewinall DCS-50FE-C Grain Packaging Machine 50kg Feed Rice Beans Woven Gunny Bag

1. Scope of Application

Quantitative packaging of granular materials in rice, seeds, feed, chemical raw materials, sugar and other industries.

2. Innovative Technology

(1) Specially designed three-sensor support. This structure eliminates the problems of stress point offset and signal distortion caused by uneven distribution of materials in the weighing hopper.

(2) The specially designed sensor and airtight working chamber of the cylinder completely isolate the corrosion and wear of the cylinder and sensor by rice flour, dust, and water vapor, which greatly prolongs the trouble-free operation time of the equipment.

(3) The independent double-cylinder feeding overcomes the difficulty that the sealing ring is easy to wear and tear that has plagued quantitative packaging equipment for many years and cannot be avoided when using three-position cylinders.

(4) External adjustment mechanism handle mechanism. The scaled handle adjustment device is used to adjust the size of the "feeding port" to the best working mode for rice with different water content and different grain shapes to ensure the weighing effect.

3. Features

(1) The international advanced high-precision weighing sensor and quantitative controller are adopted. The controller adopts high-performance A/D converter with a conversion rate of 200 times per second and an input sensitivity of 0.5μν/d. It has high measurement accuracy and good stability;

(2) The specially designed multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the packaging of the scale fast and accurate

(3) There is a manual control mode, which can be manually operated to control the feeding and bag loosening mechanisms separately, so as to facilitate the cleaning of agglomerated and blocked materials

(4) The domestic first automatic bag sewing and automatic thread cutting functions;

(5) The domestic first conveyor automatic lifting technology, the core components adopt international famous brands, advanced functions, stable and reliable;

(6) Automatic coding function, which can print qualified, inspected, first-class words and production date;

(7) It has the function of querying the number of packages and the quantity of packages.

(8) The parts in contact with the material are made of stainless steel, which is corrosion-resistant and prolongs the service life of the equipment.

4. Technical parameters

Remarks: Weighing speed refers to the data when rice is used as packaging material under specified conditions.

5. Main configuration
